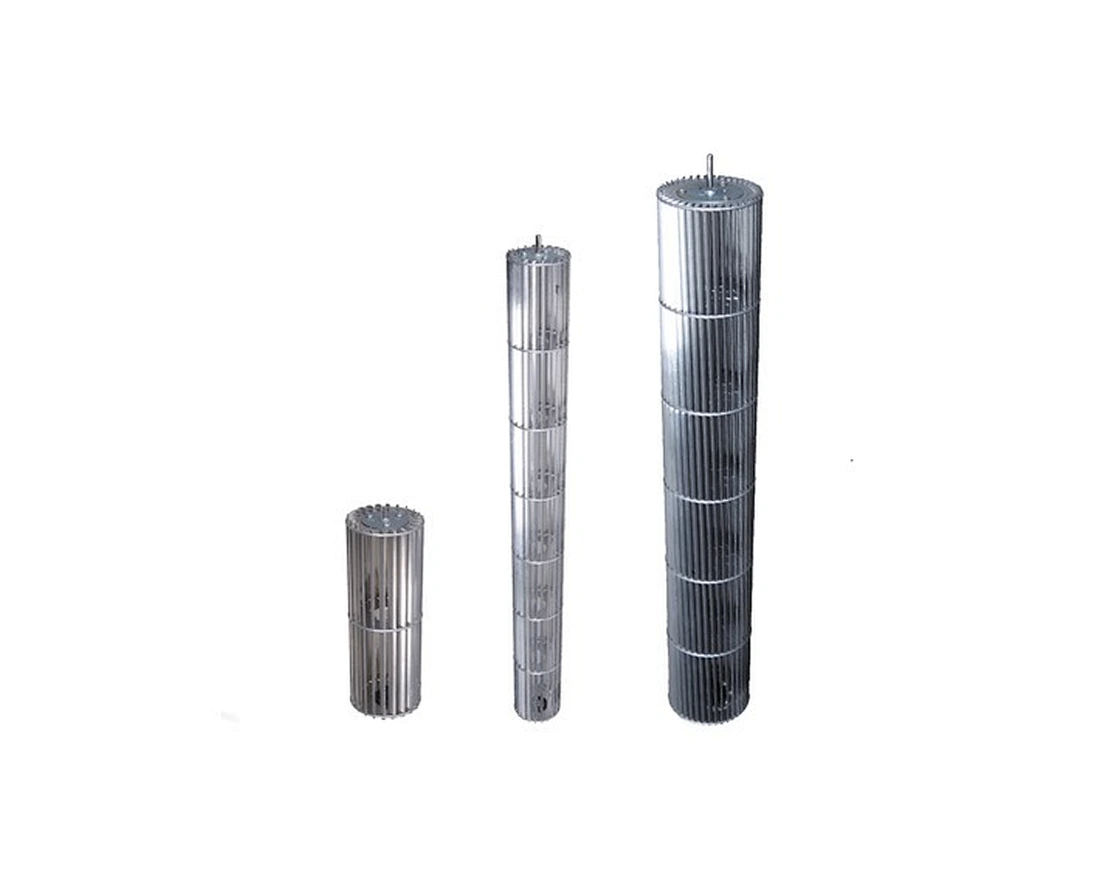

Aluminum cross flow impeller
Aluminum cross flow impeller
FOB
Quantity:
Aluminum cross flow impeller

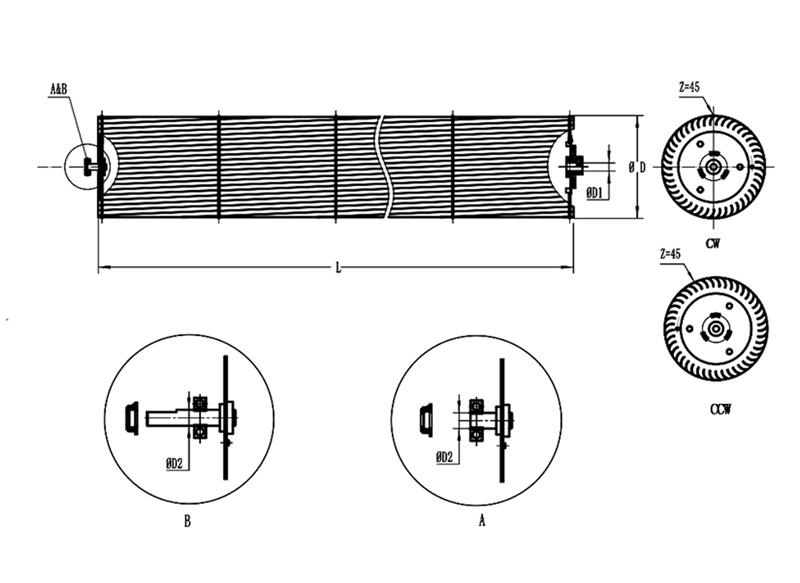

| Wheel Diameter (D) | Wheel Length (L) | Number Of Blades (Z) | Shaft Diameter (D2) | Shaft Type | Shaft Sleeve (D1) | |||
| Φ30*L | 100,150,200,250,300 ,400, | 20 | ∅3/∅4/∅6/ ∅8/∅10/∅12 | A/B | ∅3/∅4/∅6/ ∅8/∅10/∅12 | |||
| Φ43*L | 100,135,150,180.200,300,350, | 20 | ||||||
| Φ45*L | 100,115,150,180,200,240,300,360,400, | 20 | ||||||
| Φ50*L | 100,115,150,180,200,240,300,350,400,500, | 20 | ||||||
| Φ60*L | 80,120,180,240,300,360,400,450,500 , | 22/24 | ||||||
| Φ65*L | 80,120,180,240,300,360,400,450,500 , | 22 | ||||||
| Φ71*L | 80,120,180,240,300,360,400,450,500,560,600, | 25 | ||||||
| Φ81*L | 100, 145,380,391,480,550,630,……800 | 30 | ||||||
| Φ90*L | 145,380,391,480,550,630,……800 | 35 | ||||||
| Φ100*L | 250, 360,480,550,630,700,……1000 | 40 | ||||||
| Φ110*L | 250, 360,480,550,630,700,……1000 | 45 | ||||||
| Φ120*L | 250,360,480,550,660,680,706,……1000 | 48 | ||||||
| Φ150*L | 200,360,480,515,580,660,680,810,880,….1050 | 50 | ||||||
| Φ200*L | 250 360,480,515,580,660,680,810,880,….1050 | 50 | ||||||
| Customization is available for any length | ||||||||
