APPLIACATION: Air Conditioning , Air curtain, Ventilation Fans , Heaters, Air purifier … .

NOTE ： Any customization design require is acceptable (for dimensions , materials , color , performances .)

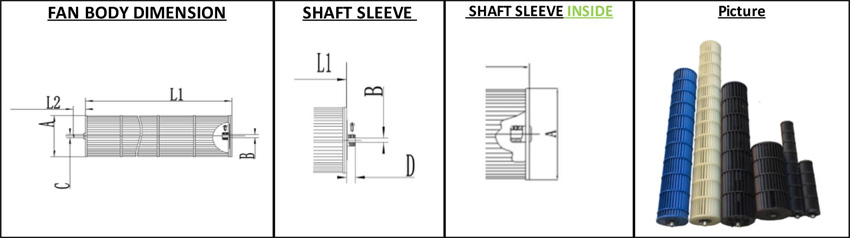

Diameter ( A):  50~200mm ;

Length (L1): Customized ( ≤ 1200 mm ) ;

Shaft Diameter ( C):  4mm ,6mm ,8mm ,12mm ;

Shaft  Length ( L2): ≤ 50 mm

Shaft sleeve Diameter(B) : 4mm ,6mm ,8mm ,12mm ;

Shaft Sleeve Length ( D):  Inside or Out size≤  35mm

Color : Custom design ( generally back ,white ,blue ,green ,gray ,etc )

Rotation : CCW&CW ( see from the shaft end )

OEM :Diameter ,length ,color ,material ,all available .
